Inkplate 5, 6, 10 and 6 Plus

All-in-one e-paper display Inkplate 5, Inkplate 6, Inkplate 10 and Inkplate 6 Plus.

The Inkplate 5, 6, 10 and 6 Plus are powerful, Wi-Fi enabled ESP32 based six-inch e-paper displays - recycled from a Kindle e-reader. Its main feature is simplicity.

Learn more at Inkplate’s documentation website

# Example minimal configuration entry

mcp23017:
  - id: mcp23017_hub
    address: 0x20

display:
- platform: inkplate
  id: inkplate_display
  greyscale: false
  partial_updating: false
  update_interval: 60s
  model: inkplate_6

  ckv_pin: 32
  sph_pin: 33
  gmod_pin:
    mcp23xxx: mcp23017_hub
    number: 1
  gpio0_enable_pin:
    mcp23xxx: mcp23017_hub
    number: 8
  oe_pin:
    mcp23xxx: mcp23017_hub
    number: 0
  spv_pin:
    mcp23xxx: mcp23017_hub
    number: 2
  powerup_pin:
    mcp23xxx: mcp23017_hub
    number: 4
  wakeup_pin:
    mcp23xxx: mcp23017_hub
    number: 3
  vcom_pin:
    mcp23xxx: mcp23017_hub
    number: 5

⚠️ Warning
When using the Inkplate epaper module, the GPIO pin numbers above cannot be changed as they are hardwired within the module/PCB.

⚠️ Warning
Inkplate module cannot perform partial update if 3 bit mode is on. It just ignores the function call in that case.

Configuration variables

id (Optional, ID): Manually specify the ID used for code generation.
model (Optional, enum): Specify the model. Defaults to inkplate_6.
- inkplate_6
- inkplate_10
- inkplate_6_plus
- inkplate_6_v2
- inkplate_5
- inkplate_5_v2
- inkplate_6_color
greyscale (Optional, boolean): Makes the screen display 3 bit colors. Defaults to false
partial_updating (Optional, boolean): Makes the screen update partially, which is faster, but leaves burnin. Defaults to false
custom_waveform (Optional, int): Sets a custom predefined waveform for the display. Accepts values from 1 to 4. Useful if the greyscale of the image seems washed. Inkplate10 ONLY. Defaults to 0
full_update_every (Optional, int): When partial updating is enabled, forces a full screen update after chosen number of updates. Defaults to 10
transform (Optional): Transform the display presentation.
- flip_y (Optional, boolean): Flip the screen on the Y axis. Defaults to false
- flip_x (Optional, boolean): Flip the screen on the X axis. Defaults to false
lambda (Optional, lambda): The lambda to use for rendering the content on the display. See Display Rendering Engine for more information.
update_interval (Optional, Time): The interval to re-draw the screen. Defaults to 5s.
pages (Optional, list): Show pages instead of a single lambda. See Display Pages.
ckv_pin (Required, Pin): The CKV pin for the Inkplate display.
gmod_pin (Required, Pin): The GMOD pin for the Inkplate display.
gpio0_enable_pin (Required, Pin): The GPIO0 Enable pin for the Inkplate display.
oe_pin (Required, Pin): The OE pin for the Inkplate display.
powerup_pin (Required, Pin): The Powerup pin for the Inkplate display.
sph_pin (Required, Pin): The SPH pin for the Inkplate display.
spv_pin (Required, Pin): The SPV pin for the Inkplate display.
vcom_pin (Required, Pin): The VCOM pin for the Inkplate display.
cl_pin (Optional, Pin): The CL pin for the Inkplate display. Defaults to GPIO0.
le_pin (Optional, Pin): The LE pin for the Inkplate display. Defaults to GPIO2.
display_data_0_pin (Optional, Pin): The Data 0 pin for the Inkplate display. Defaults to GPIO4.
display_data_1_pin (Optional, Pin): The Data 1 pin for the Inkplate display. Defaults to GPIO5.
display_data_2_pin (Optional, Pin): The Data 2 pin for the Inkplate display. Defaults to GPIO18.
display_data_3_pin (Optional, Pin): The Data 3 pin for the Inkplate display. Defaults to GPIO19.
display_data_4_pin (Optional, Pin): The Data 4 pin for the Inkplate display. Defaults to GPIO23.
display_data_5_pin (Optional, Pin): The Data 5 pin for the Inkplate display. Defaults to GPIO25.
display_data_6_pin (Optional, Pin): The Data 6 pin for the Inkplate display. Defaults to GPIO26.
display_data_7_pin (Optional, Pin): The Data 7 pin for the Inkplate display. Defaults to GPIO27.

Complete Inkplate 6 example

The following is a complete example YAML configuration that does a few things beyond the usual Wi-Fi, API, and OTA configuration.

# Example configuration entry
esphome:
  name: inkplate

esp32:
  board: esp-wrover-kit

logger:

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap: {}

captive_portal:

ota:
  platform: esphome

api:

switch:
  - platform: restart
    name: "Inkplate Reboot"
    id: reboot

  - platform: gpio
    id: battery_read_mosfet
    pin:
      mcp23xxx: mcp23017_hub
      number: 9
      inverted: true

  - platform: template
    name: "Inkplate Greyscale mode"
    lambda: return id(inkplate_display).get_greyscale();
    turn_on_action:
      - lambda: id(inkplate_display).set_greyscale(true);
    turn_off_action:
      - lambda: id(inkplate_display).set_greyscale(false);

  - platform: template
    name: "Inkplate Partial Updating"
    lambda: return id(inkplate_display).get_partial_updating();
    turn_on_action:
      - lambda: id(inkplate_display).set_partial_updating(true);
    turn_off_action:
      - lambda: id(inkplate_display).set_partial_updating(false);

sensor:
  - platform: adc
    id: battery_voltage
    update_interval: never
    attenuation: 12db
    pin: 35
  - platform: template
    name: "Inkplate Battery Voltage"
    lambda: |-
      id(battery_read_mosfet).turn_on();
      delay(1);
      float adc = id(battery_voltage).sample();
      id(battery_read_mosfet).turn_off();
      return adc;
    filters:
      - multiply: 2

i2c:
  sda: 21
  scl: 22

mcp23017:
  - id: mcp23017_hub
    address: 0x20

binary_sensor:
  - platform: status
    name: "Inkplate Status"
    id: system_status

  - platform: gpio
    name: "Inkplate Touch Pad 1"
    pin:
      mcp23xxx: mcp23017_hub
      number: 10
  - platform: gpio
    name: "Inkplate Touch Pad 2"
    pin:
      mcp23xxx: mcp23017_hub
      number: 11
  - platform: gpio
    name: "Inkplate Touch Pad 3"
    pin:
      mcp23xxx: mcp23017_hub
      number: 12

time:
  - platform: sntp
    id: esptime

font:
  - file: "Helvetica.ttf"
    id: helvetica_96
    size: 96
  - file: "Helvetica.ttf"
    id: helvetica_48
    size: 48

display:
- platform: inkplate
  id: inkplate_display
  greyscale: false
  partial_updating: false
  update_interval: 60s

  ckv_pin: 32
  sph_pin: 33
  gmod_pin:
    mcp23xxx: mcp23017_hub
    number: 1
  gpio0_enable_pin:
    mcp23xxx: mcp23017_hub
    number: 8
  oe_pin:
    mcp23xxx: mcp23017_hub
    number: 0
  spv_pin:
    mcp23xxx: mcp23017_hub
    number: 2
  powerup_pin:
    mcp23xxx: mcp23017_hub
    number: 4
  wakeup_pin:
    mcp23xxx: mcp23017_hub
    number: 3
  vcom_pin:
    mcp23xxx: mcp23017_hub
    number: 5

  lambda: |-
    it.fill(COLOR_ON);

    it.print(100, 100, id(helvetica_48), COLOR_OFF, TextAlign::TOP_LEFT, "ESPHome");

    it.strftime(400, 300, id(helvetica_48), COLOR_OFF, TextAlign::CENTER, "%Y-%m-%d", id(esptime).now());
    it.strftime(400, 400, id(helvetica_96), COLOR_OFF, TextAlign::CENTER, "%H:%M", id(esptime).now());

    if (id(system_status).state) {
      it.print(700, 100, id(helvetica_48), COLOR_OFF, TextAlign::TOP_RIGHT, "Online");
    } else {
      it.print(700, 100, id(helvetica_48), COLOR_OFF, TextAlign::TOP_RIGHT, "Offline");
    }

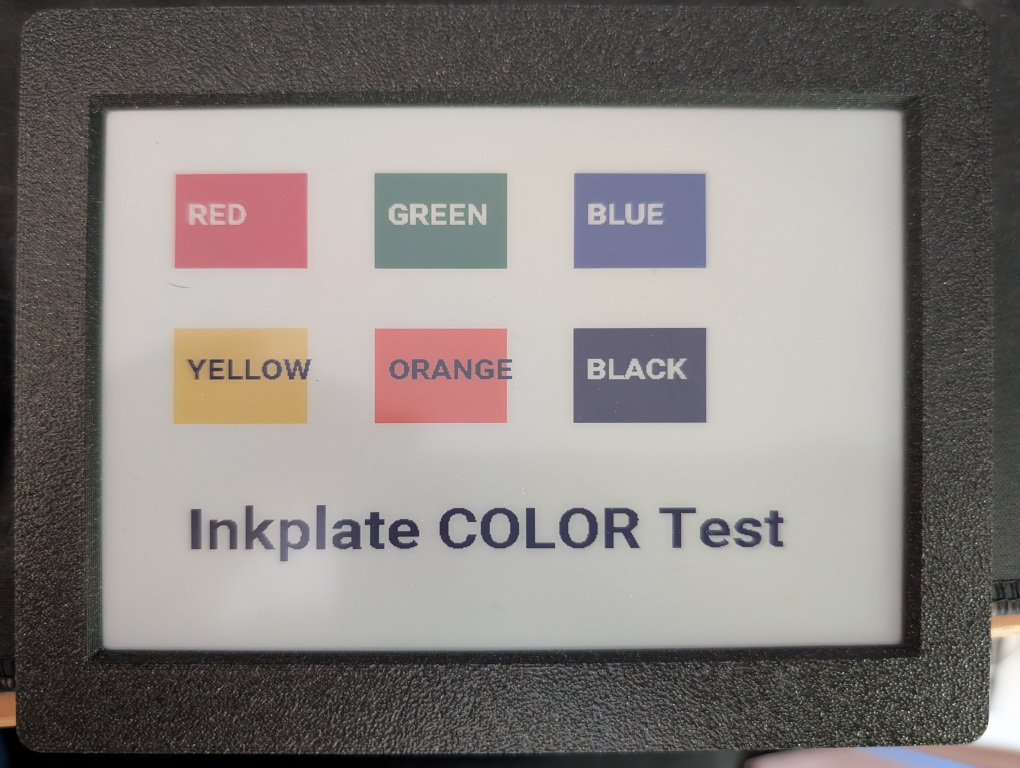

Inkplate 6 COLOR

The Inkplate 6 COLOR is a 7-color ACeP (Advanced Color ePaper) display with 600x448 resolution. It supports black, white, red, green, blue, yellow, and orange colors and uses SPI communication instead of the parallel GPIO interface used by other Inkplate models.

display:
  - platform: inkplate
    id: inkplate_display
    model: inkplate_6_color
    partial_updating: false
    update_interval: 60s

    epaper_clk_pin: 18    # SPI clock
    epaper_din_pin: 23    # SPI MOSI (data)
    epaper_cs_pin: 27     # Chip select
    epaper_rst_pin: 19    # Reset
    epaper_dc_pin: 33     # Data/Command
    epaper_busy_pin: 32   # Busy status

    lambda: |-
      // Fill background with white
      it.fill(Color::WHITE);

      // Draw colorful rectangles using built-in color constants
      it.filled_rectangle(50, 50, 100, 80, Color::RED);
      it.print(60, 70, id(font_medium), Color::WHITE, "RED");

      it.filled_rectangle(200, 50, 100, 80, Color::GREEN);
      it.print(210, 70, id(font_medium), Color::WHITE, "GREEN");

      it.filled_rectangle(350, 50, 100, 80, Color::BLUE);
      it.print(360, 70, id(font_medium), Color::WHITE, "BLUE");

      it.filled_rectangle(50, 180, 100, 80, Color::YELLOW);
      it.print(60, 200, id(font_medium), Color::BLACK, "YELLOW");

      it.filled_rectangle(200, 180, 100, 80, Color::ORANGE);
      it.print(210, 200, id(font_medium), Color::BLACK, "ORANGE");

      // Title
      it.print(150, 320, id(font_large), Color::BLACK, "Inkplate COLOR Test");

Built-in Color Constants

ESPHome provides built-in color constants for easier color usage in display lambdas:

Color::BLACK - Pure black (0, 0, 0)
Color::WHITE - Pure white (255, 255, 255)
Color::RED - Pure red (255, 0, 0)
Color::GREEN - Pure green (0, 255, 0)
Color::BLUE - Pure blue (0, 0, 255)
Color::YELLOW - Yellow (255, 255, 0)
Color::ORANGE - Orange (255, 166, 0)

Inkplate 6 Plus Touchscreen

The Inkplate 6 Plus has a built in touchscreen supported by ESPHome. Note you need to enable pin 12 on the mcp23017 to enable the touchscreen Below is a config example with touchscreen power switch:

switch:
  - platform: gpio
    name: 'Inkplate Touchscreen Enabled'
    restore_mode: ALWAYS_ON
    pin:
      mcp23xxx: mcp23017_hub
      number: 12
      inverted: true

touchscreen:
  - platform: ektf2232
    interrupt_pin: GPIO36
    rts_pin:
      mcp23xxx: mcp23017_hub
      number: 10
    on_touch:
      - logger.log:
          format: "touch x=%d, y=%d"
          args: ['touch.x', 'touch.y']

Inkplate 6 Plus Backlight

The Inkplate 6 Plus has a built in backlight supported by ESPHome. Below is a config example:

power_supply:
  - id: backlight_power
    keep_on_time: 0.2s
    enable_time: 0s
    pin:
      mcp23xxx: mcp23017_hub
      number: 11

output:
  - platform: mcp47a1
    id: backlight_brightness_output
    power_supply: backlight_power

light:
  - platform: monochromatic
    output: backlight_brightness_output
    id: backlight
    default_transition_length: 0.2s
    name: '${friendly_name} Backlight'

Inkplate 6 v2

The Inkplate 6 v2 has a slightly different configuration. The main difference is that it is using pca6416a instead of the mcp23017. Below is a config example:

# Example minimal configuration entry
pca6416a:
  - id: pca6416a_hub
    address: 0x20

display:
- platform: inkplate
  id: inkplate_display
  greyscale: true
  partial_updating: false
  update_interval: never
  model: inkplate_6_v2

  ckv_pin: 32
  sph_pin: 33
  gmod_pin:
    pca6416a: pca6416a_hub
    number: 1
  gpio0_enable_pin:
    pca6416a: pca6416a_hub
    number: 8
  oe_pin:
    pca6416a: pca6416a_hub
    number: 0
  spv_pin:
    pca6416a: pca6416a_hub
    number: 2
  powerup_pin:
    pca6416a: pca6416a_hub
    number: 4
  wakeup_pin:
    pca6416a: pca6416a_hub
    number: 3
  vcom_pin:
    pca6416a: pca6416a_hub
    number: 5

Inkplate 5

The Inkplate 5 has nearly the same configuration as inkplate 6 v2. Below is a config example:

# Example minimal configuration entry
pca6416a:
  - id: pca6416a_hub
    address: 0x20

display:
- platform: inkplate
  id: inkplate_display
  greyscale: true
  partial_updating: false
  update_interval: never
  model: inkplate_5_v2

  ckv_pin: 32
  sph_pin: 33
  gmod_pin:
    pca6416a: pca6416a_hub
    number: 1
  gpio0_enable_pin:
    pca6416a: pca6416a_hub
    number: 8
  oe_pin:
    pca6416a: pca6416a_hub
    number: 0
  spv_pin:
    pca6416a: pca6416a_hub
    number: 2
  powerup_pin:
    pca6416a: pca6416a_hub
    number: 4
  wakeup_pin:
    pca6416a: pca6416a_hub
    number: 3
  vcom_pin:
    pca6416a: pca6416a_hub
    number: 5

Inkplate 10

The Inkplate 10 has a configuration similar to 5 and 6, except it has 2 expanders and the battery read MOSFET is not inverted. Also, some versions have an embedded RTC to aid in clock sync. Below is a config example:

time:
  - platform: pcf85063
    id: esptime
    # repeated synchronization is not necessary unless the external RTC
    # is much more accurate than the internal clock
    update_interval: never
  - platform: homeassistant
    # instead try to synchronize via network repeatedly ...
    on_time_sync:
      then:
        # ... and update the RTC when the synchronization was successful
        pcf85063.write_time:

pca6416a:
  - id: pca6416a_hub
    address: 0x20
    # Primary expander for display control and additional I/O
  - id: pca6416a_hub2
    address: 0x21
    # Secondary expander for additional I/O

switch:
  - platform: gpio
    id: battery_read_mosfet
    pin:
      pca6416a: pca6416a_hub
      number: 9

sensor:
  - platform: adc
    id: battery_voltage
    update_interval: never
    attenuation: 12db
    pin: 35
  - platform: template
    name: "Inkplate Battery Voltage"
    unit_of_measurement: "V"
    accuracy_decimals: 3
    lambda: |-
      // Enable MOSFET to connect battery voltage divider
      id(battery_read_mosfet).turn_on();
      // Wait for voltage to stabilize
      delay(5);
      // Sample ADC value
      float adc = id(battery_voltage).sample();
      // Disable MOSFET to save power
      id(battery_read_mosfet).turn_off();
      return adc;
    filters:
      - multiply: 2 # Compensate for voltage divider (1:2 ratio)

display:
  - platform: inkplate
    id: inkplate_display
    greyscale: true
    partial_updating: false
    update_interval: never
    model: inkplate_10

    ckv_pin: 32
    sph_pin: 33
    gmod_pin:
      pca6416a: pca6416a_hub
      number: 1
    gpio0_enable_pin:
      pca6416a: pca6416a_hub
      number: 8
    oe_pin:
      pca6416a: pca6416a_hub
      number: 0
    spv_pin:
      pca6416a: pca6416a_hub
      number: 2
    powerup_pin:
      pca6416a: pca6416a_hub
      number: 4
    wakeup_pin:
      pca6416a: pca6416a_hub
      number: 3
    vcom_pin:
      pca6416a: pca6416a_hub
      number: 5
